Dust Agglomeration

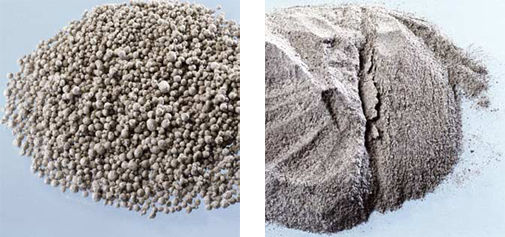

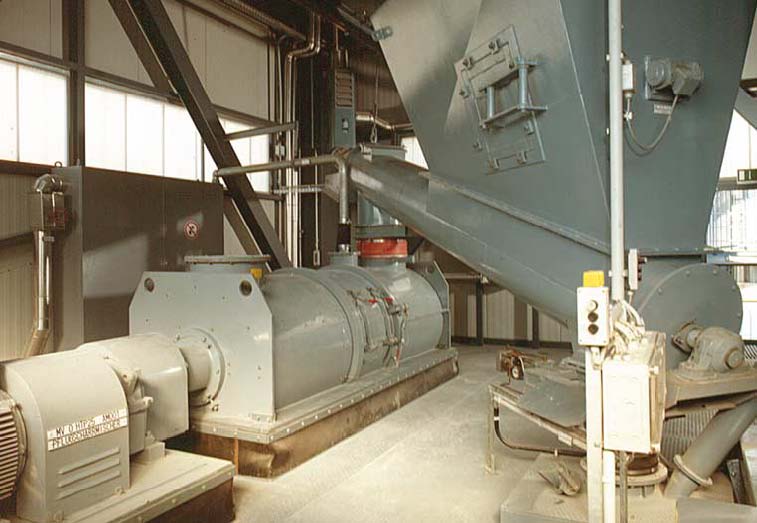

No matter how effective a dry dust collection system is – eventually the dust has to be discharged from the system. This generally leads to a materials handling nightmare, or at best a waste of water to slurry the dust so that it can be pumped to slimes dams. Loedige's KM series of Ploughshare® mixers provides an alternative solution. It is now possible to micro-agglomerate the dust into fine prills with particles sizes of around 1 mm. This makes the material dust free, facilitating materials handling by conventional means such as conveyor belts or pneumatic conveyors. The material can now easily be recycled to processes or even dumped to landfill without dusting problems being a concern. The units can also be used to micro-agglomerate furnace feeds, such as flotation concentrates, reducing the loads on bag houses.
The effectiveness of the KM mixers at homogenising materials can provide an added advantage for applications in which the effective dispersal of additives, such as binders or reductants, is critical.
With machines being able to handle a throughput of up to 900m³/h, Loedige is able to provide solutions for most dust handling problems.
Range of Application
•Agglomeration of furnace feed
• Ashes with 400°C
•
Asbestos dust
• Carbonation lime
•Fly ash from waste incineration plant
•Fly ash from power stations
• Fly ash from wood burning
• Blast furnace dust
• Converter dust
• Cupola dust
• Burdening dust
• Products of flue gas desulphurization
• Shaft furnace dust
• Dust from sintering units
• Dust from sandblasting
• Dust from cement bypass
• Dust containing zinc
The following are some examples of successful applications:
Power Stations
Micro-granulation of fly ash from power stations
• Transfer to trucks/ wagons as dust free, agglomerated product
• Non-clogging, self-cleaning mixer design
• Sizes up to a throughput of 550 t/h
Stabilizing power station by-products
• Continuous process for high performance
• Quality mix with homogeneous product
• Machine sizes for 20 t/h to 850 t/h
Waste Incineration Plants
Immobilisation of residual materials containing hazardous substances
• Precision mixing with hydraulic binding agents in batch mode
• Hazardous materials are safely integrated in the solids matrix
• Treatment in closed circuit
• Self-cleaning machine
Mixing process for changing environment-related residual material properties
• Reduction in the potential danger of residual material
• Lower dumping class entitlement
• Machines are easier to integrate in existing units
Mixing processes for special waste to avoid peak loads in flue gas scrubbing
• Homogenisation of materials having high and low calorific value
• Provides more uniform waste incineration
• Emission peaks in flue gas scrubbing are reduced
Steelworks
Shock cooling for slag and dust
• Rapid treatment through flush steaming
• Input over 650° C
• Discharge under 100° C
• Micro- or macro-granulated end material
Unit for micro and macro granulation of dust from steelworks
• Consultation and engineering
• Mixing and dosing unit manufacture with measurement and control techniques
• Commissioning
Mixing technology for micro and macro granulation of dust from steelworks
• Discharge of the product in free-flowing, non-slimy form
• Micro or macro granulated product
• Sizes for throughput up to 200 t/h
Mixing granulation of iron slurry, ferrous oxide and iron dust
• End material can be reused for steel production
• Continuous process possible
• Granulate sizes can be controlled
Optional Equipment:
• Highly wear resistant surfaces
• Heavy duty steels, stainless steels and special materials
• Chopper units
• Heated/cooled drum, endplates and shaft
• Equipment for liquid supply.
